Description

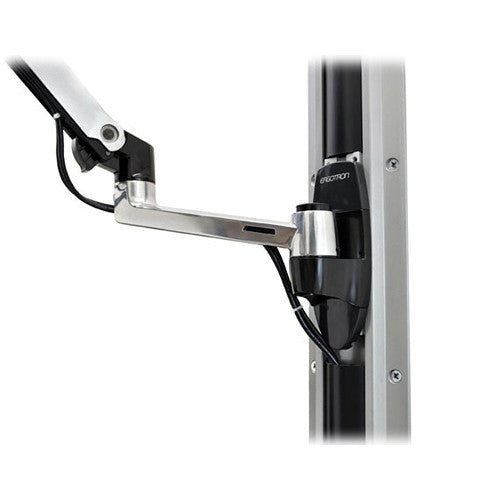

The LX Wall Mount Keyboard Arm from Ergotron helps you to position your keyboard for maximum comfort and productivity. It attaches to sturdy vertical surfaces or wall tracks via a bracket (97-091, sold separately), while providing vertical and side-to-side motion.
Constant Force lift-and-pivot motion technology allows you to position your keyboard with just a light touch. The arm extends the keyboard tray up to 35" and you can also adjust height up to 13". It folds straight up at 90° to protrude just 3.5" from the wall. The ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry to avoid repetitive-stress injuries while increasing comfort and productivity. Fasteners for direct attachment to wood and metal studs or concrete surface are not included.
- Arm extends keyboard tray out up to 35" and also features height adjustment of 13"
- Creates a complete workstation when paired with the LX LCD arm
- Simple installation and easy operation
- Polished aluminum construction offers better durability and enhanced aesthetics
- Snap-fit cap secures interface of arms to extensions for better stability
- Mouse tray slides out to left or right, depending on user preference
- Folds to within 3.5" of wall in storage position
- Integrated cable management
- Base includes theft deterrent anchor holes for cable locks
- Passes Ergotron's 10,000-cycle motion test
Ergotron 45-246-026 Specs
|
Load Capacity |
5.0 lb (2.2 kg) |
|
Lift |
13.0" / 33.0 cm |
|
Extension From Wall |
35.0" / 88.9 cm |
|
Dimensions (Folded) |
3.5" / 8.9 cm from wall |
|
Tilt |
Backtilt: 5° when in down position |
|
Pan |
360° |
|
Mounting Options |
Attaches directly to sturdy vertical surfaces |
|
Construction Material |
Polished aluminum |
|
Dimensions |
Keyboard Size: 17.5 x 10.1" / 44.5 x 25.7 cm |
|
Weight |
9.0 lb / 4.1 kg |
Packaging Info
|
Package Weight |
11.2 lb |
|
Box Dimensions (LxWxH) |
20.2 x 11.3 x 7.4" |
