Description

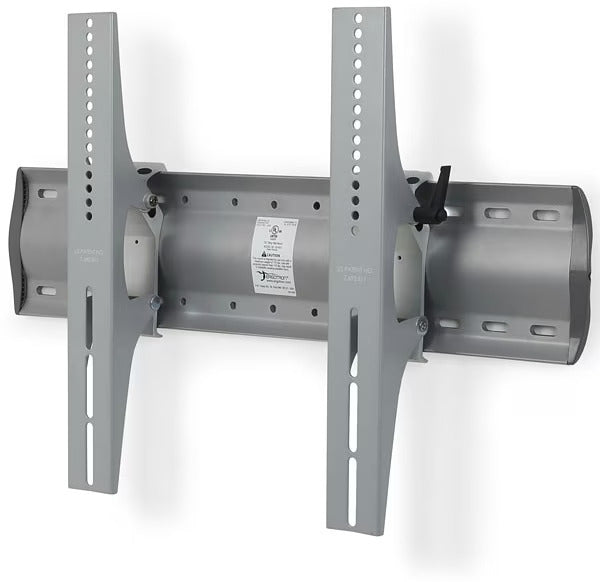

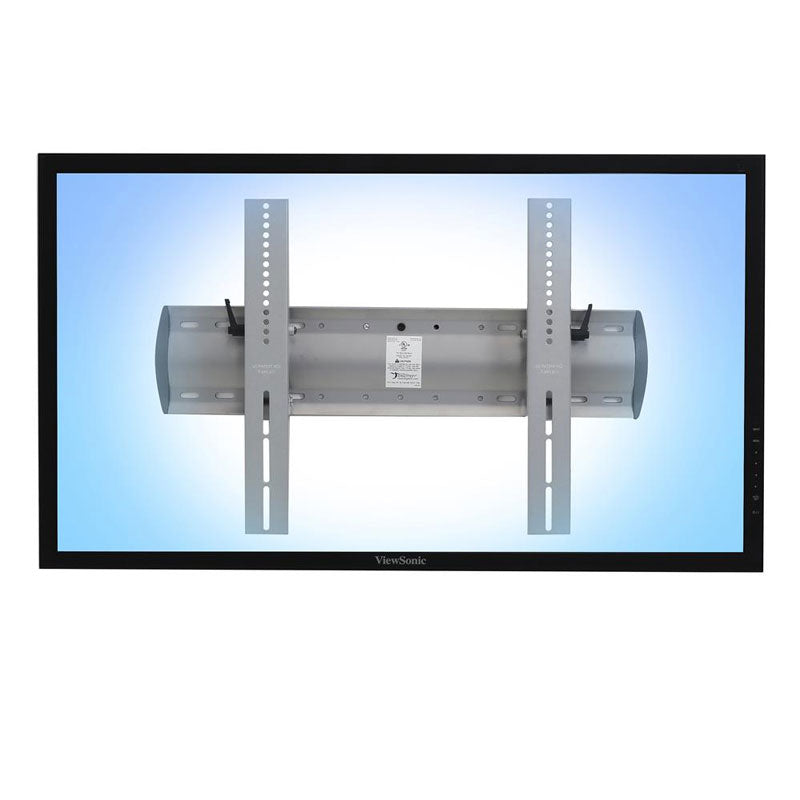

The Ergotron TM Tilting Wall Mount XL (61-142-003) provides extra width to accommodate larger TVs and monitors with VESA hole patterns up to 800 mm wide. Built with Constant Force™ technology, it allows effortless tilt adjustment to reduce glare and improve viewing angles. Its robust design ensures stability while integrated security fasteners protect your investment.
🔑 Key Details
- Color: Silver
- Screen Size Support: 42" and larger
- Weight Capacity: Up to 175 lbs (79 kg)
- Tilt Range: +15° forward, -5° back

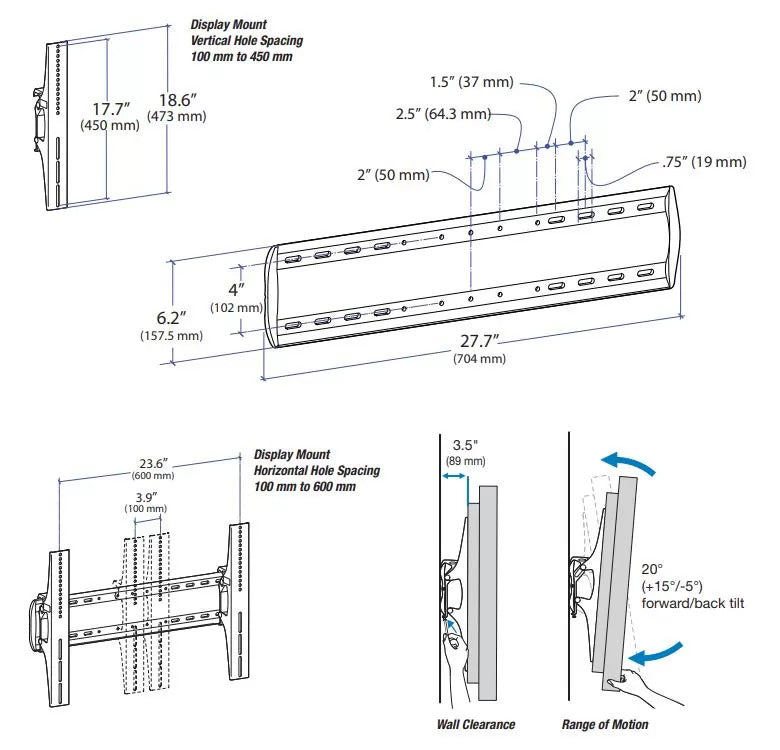

- Mounting Hole Pattern: Horizontal 100–800 mm, Vertical 100–450 mm
- Stud Compatibility: Fits 16" or 24" on-center studs
- UPC: 698330412008
📊 Spec Sheet
|
Feature |
Details |
|
Screen Size Support |
≥ 42" |
|
Max Load Capacity |
175 lbs (79 kg) |
|
Tilt Range |
+15° forward / -5° back |
|
VESA Compatibility |
100 x 100 mm to 800 x 450 mm |
|
Stud Compatibility |
16" or 24" on-center |
|
Material |
Steel |
|
Color |
Silver |
⚖️ Weight & 📦 Box Size
- Product Weight: ~18–20 lbs (8–9 kg)
- Shipping Weight: ~22 lbs (10 kg)
- Box Dimensions: Approx. 33" x 12" x 4" (84 x 30 x 10 cm)
