Description
Upgrade a non-drawer powered cart for medication delivery with this drawer assembly. Triple version provides three separate small drawers. Ergotron 97-867 drawer works in conjunction with the cart’s electronic auto-locking drawer system.
- Contains all parts needed to create an auto-locking drawer system
- Individual drawers are easily removed for stocking and cleaning
- Configure the interior of each drawer to suit your needs using the provided dividers
Part Number: 97-867
Description: SV44 Primary Triple Drawer for LCD carts (grey/white)

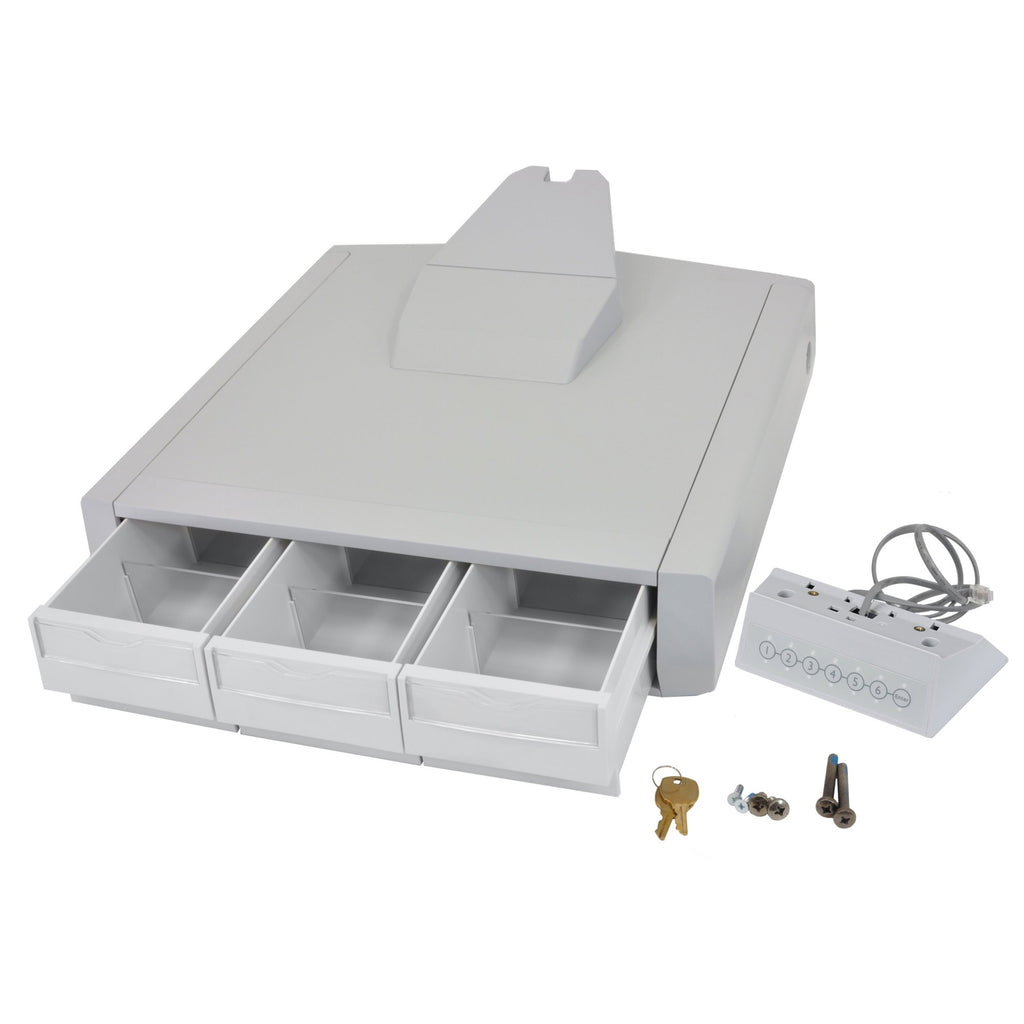

Includes:
Drawer assembly
Three small drawers
Dividers
Controller board
Keypad
Cable

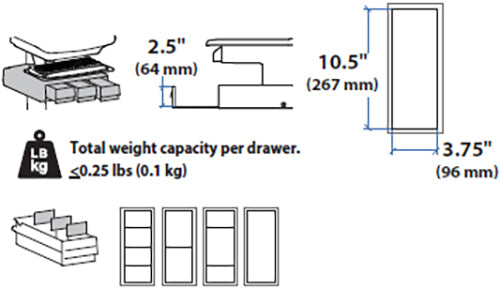

Weight Capacity: Up to 0.25 lbs (0.1 kg). Stated capacity represents maximum load per individual small drawer
Internal Dimensions (Individual Small Drawer): 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments
Primary Drawer: The primary drawer must be the first drawer attached to the cart as it contains the drawer controller
SV LCD and Laptop Carts: StyleView LCD and laptop carts differ in their keypad configuration - be sure to order the correct primary-drawer version
Compatible: Only with SV42/44 series LCD carts
Drawers: Feature electronic and key-lock access
Shipping Dimensions: 18" x 18" x 9.5" (457 x 457 x 240 mm)
Shipping Weight 12 lbs (5.5 kg)
