Description
Ergotron LX Wall Mount Monitor Arm 34" 45-243-026
FEATURES:
- Wall mount monitor arm
- 13" height adjustment: Vertical lift range meets needs of most adults
- 25" horizontal extension: Arm extends to get out of the way when not in use
- 34" screen size: Monitor should not be more than 34" in screen size
- Weight capacity of the arm: 7-25 lbs
- Retractability: Folds back over the base to get out of the way when not in use
DESCRIPTION:

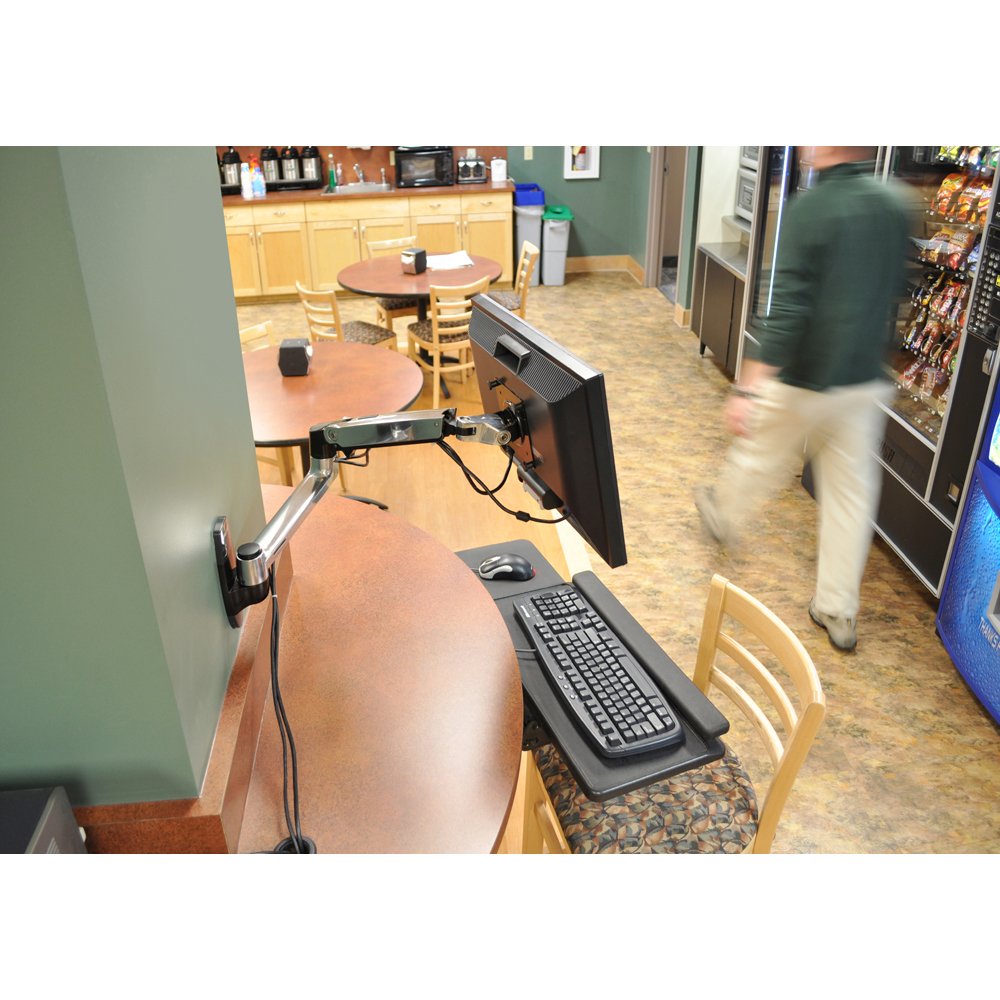

Ergotron 45-243-026 can mount a monitor to the wall up to 34" in size and weighing from 7 to 25 lbs. With the flexibility of this arm, the monitor can be extended 25" and moved out of the way, when not in use. It can also be adjusted 13" vertically. The 45-243-026 has universal application. Install it in your office to use your desk space entirely for non-computer work, install it in the patient room for the medical staff to look up patient information or in the back end of a restaurant for the servers to convey orders to the kitchen. (Though the video in the thumbnail images shows directions to install a desk mounting arm, please note that the functionality and specifications of the LX desk mounting arm and LX wall mounting arm are the same, even though the mounting location differs.)
BENEFITS:
The LX Wall Mount Arm provides ergonomic comfort
By adjusting the display according to the user’s needs, this arm reduces shoulder, neck, back and eye stress

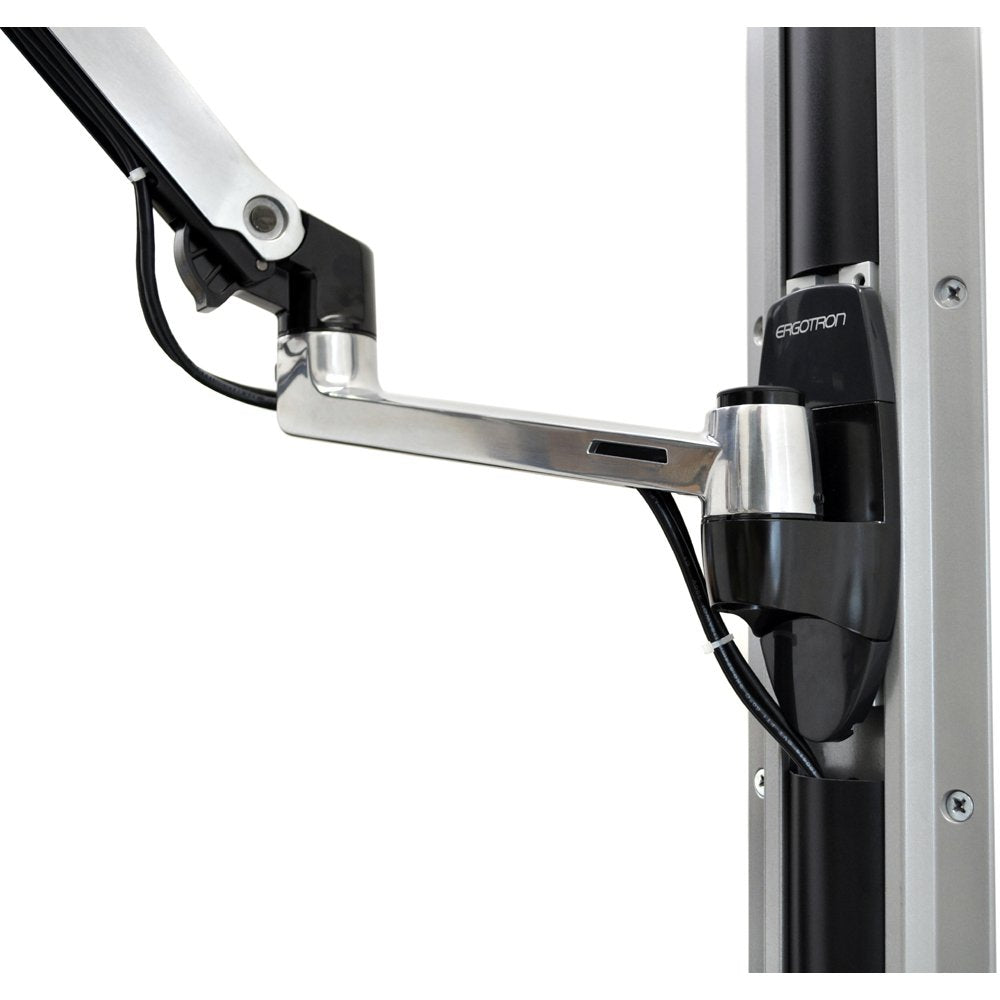

The cable management feature clubs the cables under the arm and out of sight and way of the user
The arm extends 25" from the wall, enabling the display to be pushed out of the way, when not in use
The 13" height adjustment of the display makes it suitable for most users
Upgrade LCD monitors and TVs with improved ergonomic adjustment
Patented CF motion technology provides premium ease-of-use display adjustment
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
SPECS:
Part Number 45-243-026
Description LX Wall Mount LCD Monitor Arm (polished aluminum)
Includes LX arm Extension, Wall mount base
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment.
Weight Capacity 7 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Monitor Tilts 70 degree up and 5 degree down
Improved LX Arm Features and Benefits
Polished aluminum construction offers greater durability and enhanced aesthetics.
Arm folds back over the base into a compact retracted position.
Snap-fit cap secures interface of arm to extension for greater stability.
Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Base Includes theft deterrent anchor holes for cable locks.
Shipping Dimensions 17.5"H x 7.7"W x 6.9"D (44.5 x 19.5 x 17.5 cm)
Shipping Weight 6.2 lbs (2.8 kg)
