Description
Part 45-272-026
UPC: 0698833018189

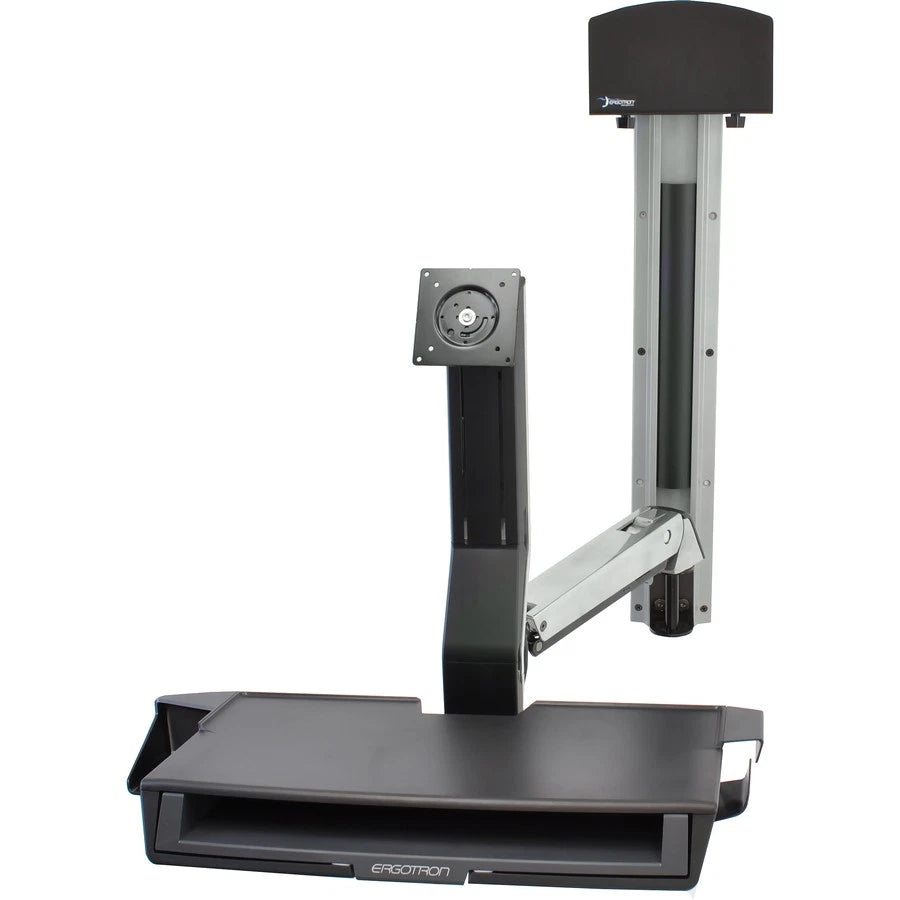

This complete system provides easy re-positioning of your entire workstation-move your display, keyboard, mouse and barcode scanner in a single motion!
Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver work flow. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
Device Supported: CPU
Device Supported: Flat Panel Display
Device Supported: Mouse
Device Supported: Keyboard
Maximum Load Capacity: 32 lb
Maximum Screen Size Supported: 24"
Features: Tilt
Features: Swivel
Physical Characteristics
VESA Mount Compatible: Yes
Mounting Pattern: 75 x 75
Mounting Pattern: 100 x 100
Product Material: Aluminum
Product Material: Plastic
Miscellaneous
Package Contents:
HD Combo Arm
34" Wall Track with (2) Black Track Cover
Small Black CPU Holder
CPU Spacer
2 x 10" Cable Channel
CPU and Arm Track Mount Bracket Kit
Wall Track Fasteners for Concrete and Wood
CPU Direct Wall Mount Kit
Height Adjustable LCD Mount
Wrist Rest
Scanner and Mouse Holder
Integrated Keyboard Tray with left/right Mouse Tray
Handle
VESA Monitor Mounting Kit
Cable Tie
Mounting Hardware
Additional Information:
Support work flow needs with sturdy worksurface: 22.75"W x 10.6"D
Weight Capacity - Display = 6-18 lbs
Weight Capacity - Worksurface = 10 lbs
Weight Capacity - Keyboard, mouse and barcode scanner = 4 lbs
Easy-to-clean features promote superior infection control
Barcode scanner holder provides easy access to hand-held scanner
Extend LCD and keyboard up to 43" from wall
Clean, concealed and neat routing of cables through the expansive cable management system
LCD and keyboard adjusts 20" in tandem with single-motion
LCD adjusts 5" independently
Maximum LCD height adjustment = 25"
Monitor up/down tilt = +25°/-5°
Compatibility: LCD Screen
Certifications & Standards:
VESA:
FDMI
MIS-D
C (hole patterns = 100 x 100 mm and 75 x 75 mm)
